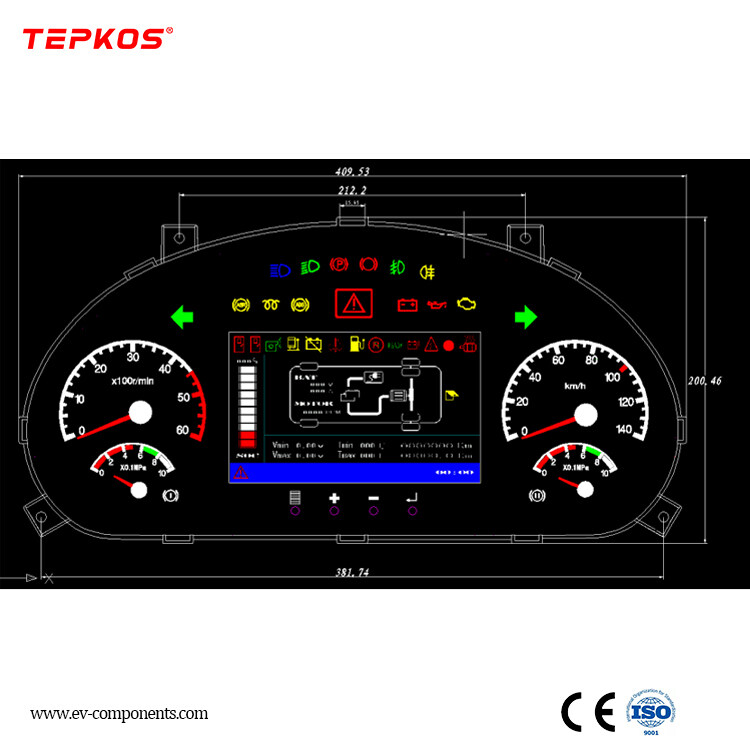

7-Inch TFT Instrument Cluster: Clear, Customizable Vehicle Data at a Glance
High-Resolution Interactive Interface
7-Inch TFT LCD: 800×480 resolution with 262K color support ensures sharp, sunlight-readable graphics-50% brighter than standard displays for clear visibility in direct sunlight or low-light conditions.
Customizable Layouts: OEMs can configure display themes (e.g., sport mode with red accents, eco mode with green indicators) and widget placement (speed, RPM, fuel level) to match vehicle branding or driver preferences.
Dynamic Data Presentation
Main Information Screen: Prioritizes critical metrics (speed, engine RPM, battery voltage, fuel range) in large, easy-to-read fonts.
Alert System: Instantly highlights warnings (e.g., low tire pressure, brake system faults) with flashing icons and audible cues, positioned to catch the driver's eye without distraction.
Technical Capabilities: Reliable Performance in Any Environment
Flexible Connectivity & Processing
Multi-System Integration: Connects to ECU, TCU, and BCM via CAN/LIN protocols, processing up to 30 digital signals, 10 analog inputs, and 5 frequency signals (e.g., wheel speed, engine timing) for real-time data accuracy.
Efficient Hardware: Built-in 32-bit microprocessor ensures 100ms data refresh rates, with 2MB memory for storing user settings and diagnostic history.
Environmental Resilience
Extreme Temperature Tolerance: Operates seamlessly from -30°C (arctic cold) to +70°C (desert heat), meeting ISO 16750-4 thermal stability standards.
IP54 Protection: Dust-resistant and splashing-water proof, suitable for daily commuters or light commercial vehicles exposed to harsh weather.
EMC/EMI Compliance: Meets CISPR 25 Class 4 electromagnetic standards, minimizing interference with navigation systems or mobile devices.
Versatile Applications for Modern Vehicles
Passenger Cars & SUVs
Enhanced User Experience: Supports advanced driver assistance systems (ADAS) by displaying lane departure warnings, adaptive cruise control status, and blind-spot alerts directly in the driver's line of sight.
Eco-Driving Support: Shows real-time fuel efficiency or electric vehicle range data, encouraging sustainable driving habits.
Light Commercial Vehicles
Fleet Management Ready: Integrates with telematics platforms to display maintenance alerts (e.g., oil change reminders, tire wear notifications) and optimize route efficiency.
Durable Design: Withstands 30G vibration for delivery vans or service trucks operating on rough roads.
Manufacturing Excellence: Quality You Can Rely On
Precision Engineering
Premium Components: Anti-glare LCD coating reduces reflections, while aluminum alloy housing enhances heat dissipation and durability.
Automated Production: Robotic assembly and 100% functional testing (brightness, touch response, signal integrity) ensure a 99.5% defect-free rate.
Industry Compliance & Testing
Rigorous Validation: 8,000-hour continuous operation test (equivalent to 8 years of use) and 1,000-cycle thermal shock testing ensure long-term reliability.
OEM Support & Customization
Tailored Solutions for Your Needs
Software Development Kits (SDK): Enable OEMs to create unique UI/UX designs, including animated gauges, brand logos, and language-specific menus.
Technical Integration Support: Expert engineers assist with CAN protocol configuration and hardware integration, reducing development time by 30%.
Elevate Driver Safety and Vehicle Functionality
Our 7-inch TFT instrument cluster combines high-definition display technology with rugged reliability, providing drivers with the information they need to operate safely and efficiently. Backed by rigorous quality control and OEM-friendly customization, it's the smart choice for modern vehicle interiors-from compact cars to commercial fleets.
Contact us today to explore how our cluster can enhance your vehicle's dashboard, improve driver interaction, and meet the demands of tomorrow's mobility-engineered for clarity, built for performance.
