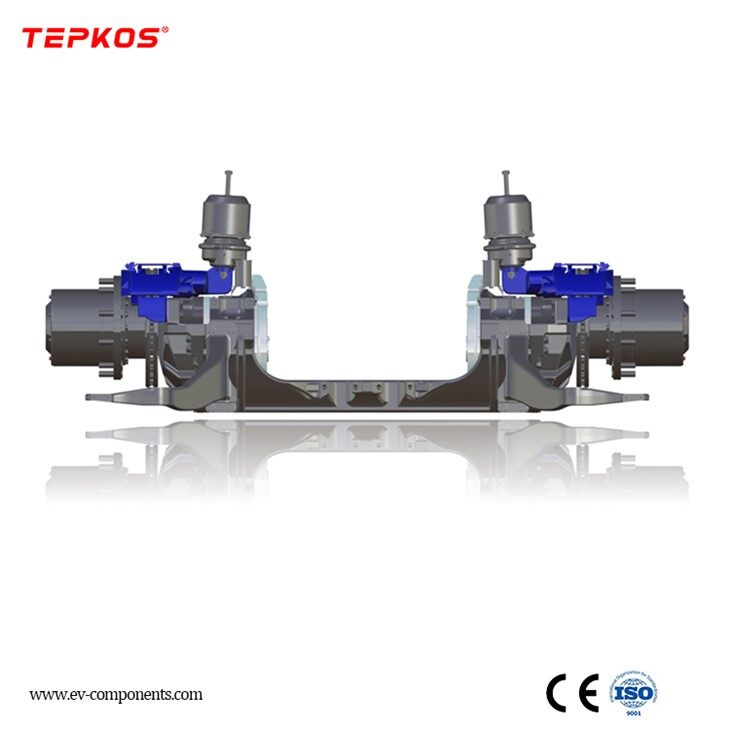

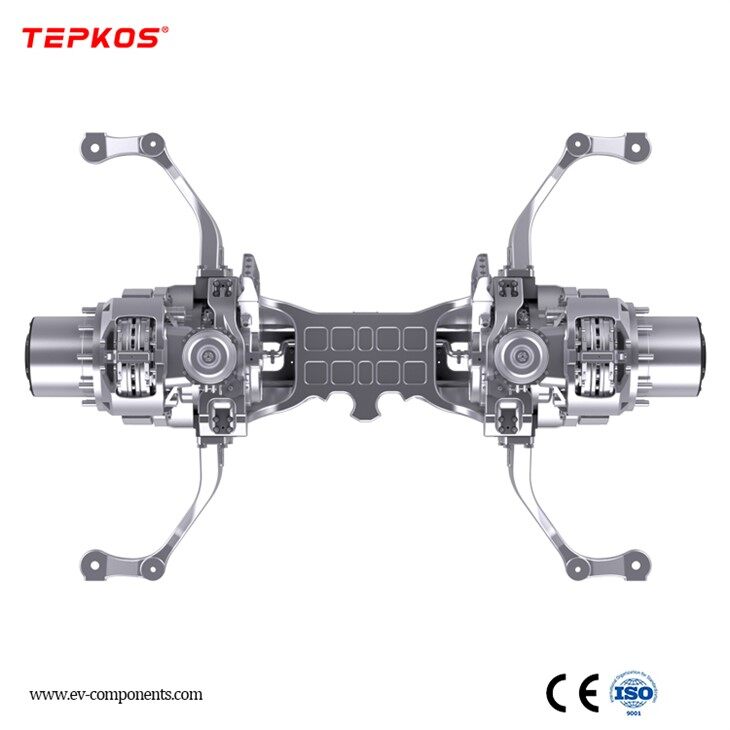

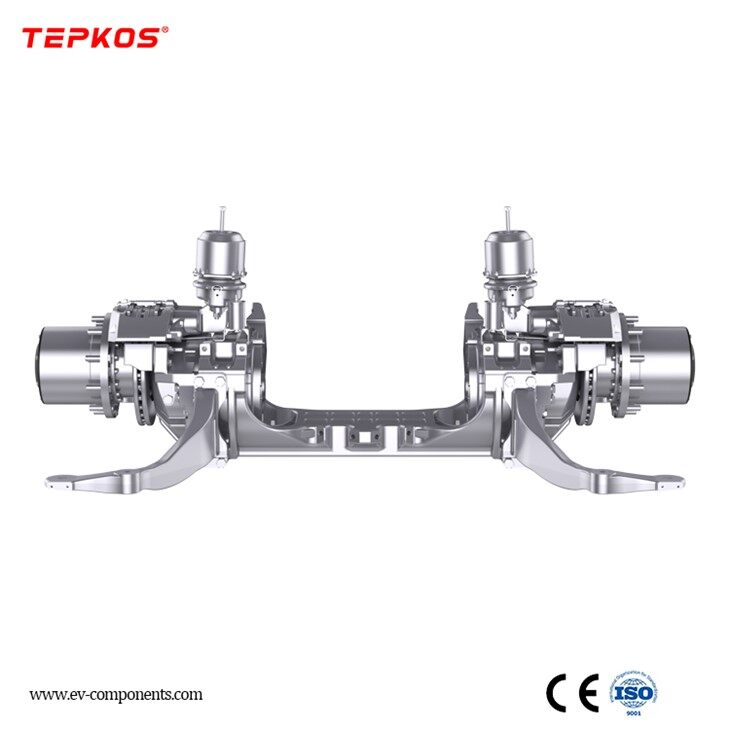

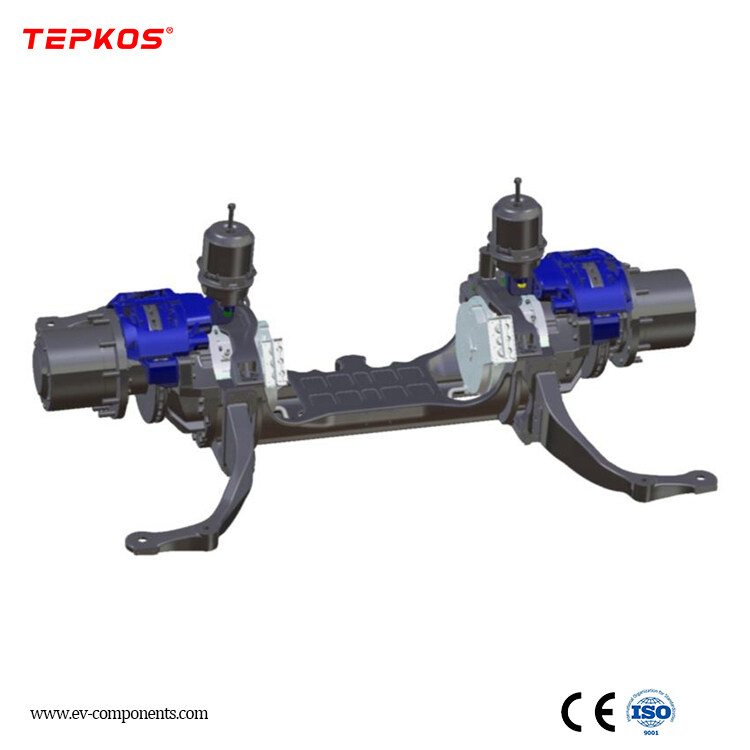

C2100P Electric Rear Axle: High-Torque Power for Airport Shuttle Buses
High-Power Motor Specs
Dual-Motor Configuration:
- Peak Power: 2×160kW for rapid acceleration (0–60km/h in <10s for loaded shuttles).
- Rated Power: 2×80kW for consistent performance during frequent stops.
Torque Capability:
- Peak Torque: 2×580N·m for heavy passenger loads;
- Rated Torque: 2×220N·m ensures stable low-speed control.
8,000r/min Motor Speed: Enables smooth highway merging between airport terminals.
Mechanical Design
1127kg Axle Weight: Supports 14,000kg rated load for full-capacity shuttles.
IP67 Protection: Dust-tight and water-resistant (1m submersion), reliable in airport rain or snow.
18.58 Gear Ratio: Optimizes torque for frequent starts/stops, with disc brakes for responsive braking.
Product Parameters
|
Item |
Unit |
Parameters |
|
Product model |
- |
C2100P |
|
Motor type |
- |
PMSM |
|
Motor power(peak/rated) |
kW |
2×160/2×80 |
|
Motor speed(max) |
r/min |
8000 |
|
Motor torque(peak/rated) |
N.m |
2×580/2×220 |
|
Rated voltage |
VDC |
540 |
|
IP |
- |
IP67 |
|
Axle weight |
kg |
1127 |
|
Rated axle load |
kg |
14000 |
|
Wheel speed(max) |
r/min |
430 |
|
TIRE SIZE |
- |
275/70R22.5 |
|
Rim size |
inch |
22.5 |
|
Brake |
- |
Disc brake |
|
Gear ratio |
- |
18.58 |
Performance Advantages for Airport Operations
Energy Efficiency for Extended Use
95% Power Conversion: Minimizes energy loss, extending shuttle range by 15%-ideal for 24/7 airport operations.
Regenerative Braking: Recovers 20% of braking energy during terminal loops, reducing battery consumption.
Durability in Harsh Environments
Vibration Resistance: Withstands 50G vibration for rough airport pavement.
Temperature Stability: Operates -30°C to +70°C, ensuring year-round reliability in all climates.
Product Detail
Vehicle Integration
Tire Compatibility: Works with 275/70R22.5 tires and 22.5-inch rims, achieving 430r/min wheel speed for stable cruising.
Compact Layout: 15% smaller than traditional axles, optimizing shuttle interior space for passenger seating.
Airport Shuttle Applications
Terminal-to-Terminal Transport
Frequent Stop Performance: High torque enables quick acceleration from gates, while regenerative braking reduces wear on components.
Quiet Operation: ≤75dB noise level maintains calm passenger environments in airport zones.
Heavy-Duty Shuttle Fleets
14,000kg Load Capacity: Supports full passenger loads with luggage, ensuring consistent power delivery.
All-Weather Reliability: IP67 protection withstands airport de-icing fluids and heavy rain.
Quality Engineering: Built for Airport Demands
Stringent Manufacturing
108 Test Protocols: Developed by our expert team, exceeding industry standards for safety (e.g., 10 million cycle fatigue testing).
Precision Components: High-strength steel gears and corrosion-resistant housing undergo 100% functional testing.
Product Qualification
Rigorous Testing: Our electric rear axle has undergone rigorous performance, safety, and durability tests. These tests simulate various driving conditions to ensure the product's reliability.
Industry Standards: It meets relevant industry standards, ensuring that it can operate safely and efficiently in different environments.
Power Airport Mobility with Efficient Torque
Our C2100P electric rear axle empowers airport shuttles with high-torque performance and energy efficiency-engineered to handle constant use, heavy loads, and all-weather conditions. Backed by rigorous testing and airport-specific design, it's the reliable choice for modern airport transportation fleets.
Contact us today to explore how our axle can optimize your shuttle operations-built for airports, designed for durability.
